Best Tilt and Trim Gauge Options for Boats and Yachts
The Best Tilt And Trim Gauge article helps buyers find reliable 0-190 ohm trim gauges to monitor boat balance and engine performance. This guide highlights five top options, explains which boaters they suit, and points out practical caveats. Ideal for boaters who want accurate, visible trim readings, from casual weekend sailors to serious performance cruisers. Below is a quick comparison table to help you skim key details before diving into product specifics.
| Product | Best For | Key Feature |
|---|---|---|
| ARTILAURA Trim Gauge Meter | Yacht and sailboat owners needing seven backlight colors | 7 backlight colors for day/night visibility |
| MH Boat Trim Gauge UP DN 0-190ohm | Saltwater users needing 316 stainless bezel | 316 stainless bezel with IP67 rating |
| BLUERICE 52mm Trim Gauge UP DN | Budget-friendly, flexible 0-190 ohm readouts | IP67 waterproof, 7 backlight colors |
| BLUERICE Marine Trim Gauge UP DN (IP68) | Rugged, long-term exposure to harsh elements | IP68 waterproof, 7 color backlight |
| Sierra 65504P Marine Trim Gauge | Simple, compact option with low power draw | Low current draw, UP-DOWN dial |
ARTILAURA Trim Gauge Meter 0-190ohms 52mm
Best for performance-minded boaters who want a vivid, easily legible gauge with multiple backlight options. The 2-1/16″ (52mm) dial fits standard instrument panels and uses a 0-190 ohm signal to display trim balance. Constructed with a 316L metal body and scratch-resistant glass, it resists marine conditions. The seven backlight colors—red, green, blue, yellow, white, Teal, purple—enable quick visibility in various lighting. The gauge supports UP-DN readings for intuitive balance monitoring.
Who this is best for:Owners of sailboats or sport boats needing clear night visibility and customizable illumination. Why selected: versatile backlighting improves readability in changing light, and the 316L build resists corrosion. Caution: Ensure your trim sensor signal is within 0-190 ohms to avoid inaccurate readings.

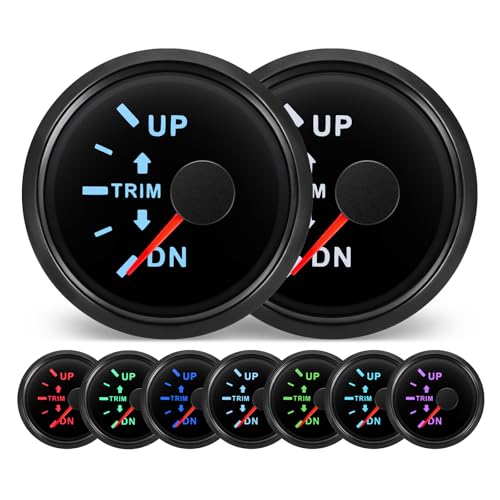

MH Boat Trim Gauge UP DN 0-190ohm (52mm)
Better for saltwater reliability with a robust 316 stainless steel bezel and anti-fog glass. This 52mm gauge uses the 0-190 ohm signal and offers seven backlight colors for high-visibility operation in dim cabins or bright sun. IP67 protection helps withstand dust and splashes, making it suitable for harsher marine environments. The gauge’s UP-DN range clearly indicates trim in real time, which is valuable for performance tuning.
Who this is best for:Coastal and offshore boaters needing durable construction and customizable lighting. Why selected: strong corrosion resistance and IP67 protection improve longevity. Caution: Avoid placing the gauge near the engine heat source to minimize fogging; allow sufficient space behind the panel.
BLUERICE 52mm Trim Gauge UP DN 0-190ohm
Designed for straightforward installation and versatile use. It supports 0-190 ohm signals and offers seven backlight colors to tailor visibility. The 52mm diameter fits standard panels, with a focus on practical installation rather than premium materials. This gauge is well-suited for recreational boats and entry-level installations where cost efficiency matters.
Who this is best for:Boat owners seeking a cost-effective, easy-to-install trim gauge. Why selected: simple setup and multiple backlight colors. Caution: Confirm the sensor signal before purchase to ensure compatibility with your trim sender.
BLUERICE Marine Trim Gauge UP DN 7 Color Backlight
Best for users needing rugged performance in demanding environments. This gauge uses 0-190 ohm signals and features IP68 waterproofing and a stainless steel construction for long-term use in acid or humid environments. The seven backlight colors enhance readability across lighting conditions, making it a robust choice for boats that operate in varied climates and sea states.
Who this is best for:Heavy-use vessels and competitive boats requiring durable housing. Why selected: IP68 rating and stainless steel bezel provide strong protection against corrosion and water ingress. Caution: Heavy-duty use may require additional sealing to maintain a clean behind-panel area.
Sierra 65504P Marine Trim Gauge
Simple, compact option for basic trim monitoring with UP-DOWN dial, designed for low power draw. The bezel outer diameter is around 2.34 inches, and it provides a straightforward 0-190 ohm or related signal interpretation. Suitable for smaller boats or as a secondary gauge on larger rigs where a simple indicator is sufficient.
Who this is best for:Budget-conscious boaters and those adding a secondary gauge. Why selected: compact size and low current draw. Caution: May lack advanced backlight options found on higher-end models.
Buying Guide
What is a tilt and trim gauge? A tilt and trim gauge displays the angle or balance of a watercraft’s propulsion system, typically using a 0-190 ohm signal to indicate trim position. It helps optimize efficiency, handling, and planing performance.
What to consider when choosing
- Signal compatibility: Ensure your trim sender supports 0-190 ohms and matches the gauge input.
- Dial size: 52mm (2-1/16″) is standard; verify panel cut-out and available space on your dash.
- Weatherproofing: IP67 or IP68 ratings are preferable for saltwater use; consider anti-fog glass if you operate in humid environments.
- Material and finish: Stainless steel bezels resist corrosion; choose 316L for saltwater reliability.
- Backlighting: Seven-color backlights improve visibility day and night; determine which color scheme works best for your cockpit lighting.
Installation and compatibility tips
- Measure the panel cut-out before ordering to avoid fit issues.
- Place gauges where visibility is unobstructed, with clear access behind the panel for wiring and sealing.
- Use proper seals and mounting brackets to prevent water intrusion and fogging behind the glass.
- Check overall system voltage compatibility; most gauges operate on 9-32V, with short peaks up to 36V.
Practical considerations
- Calibration: Some gauges rely on sensor accuracy; verify install and, if needed, recalibrate per manufacturer guidance.
- Maintenance: Regularly inspect waterproof seals and wiring for corrosion or wear.
- Future upgrades: If you plan to upgrade sensors or panels, ensure new gauges share a common signal standard to simplify wiring.
FAQ
- What does a 0-190 ohm trim gauge indicate? It reads the trim signal from the sender, showing the engine or drive unit’s tilt position.
- Are IP67 and IP68 ratings necessary? They are beneficial for harsh marine environments; higher ratings offer better water ingress protection.
- Can I mix brands? Yes, as long as signals are compatible (0-190 ohms) and mounting dimensions match.
- Is backlighting essential for night use? It improves readability in dim cabins or bright sun, but is not strictly necessary if the gauge remains legible without lighting.
- What maintenance is required? Inspect seals, ensure behind-panel clearance, and verify the sensor signal remains within specification during periodic checks.
- How do I choose between IP67 and IP68? IP68 offers higher water ingress protection and is preferred for deeper or more exposure-prone installations.
