Best Marine Diesel Exhaust Mixing Elbows for Yanmar and Similar Engines
If you’re upgrading or replacing a diesel exhaust mixing elbow, this guide highlights reliable stainless steel options that fit common Yanmar and other marine engines. These components help reduce exhaust temperatures, protect engine bays, and improve overall exhaust efficiency. Each product is evaluated for best-use scenarios, durability, and compatibility, so you can choose the right elbow for your boat and engine model.
| Product | Brand | Compatible Engines | Why It Stands Out |
|---|---|---|---|
| ihreesy 128990-13520 Exhaust Mixing Elbow | ihreesy | Yanmar 2GM, 3GM, 3HM, 3YM | |
| 124070-13520 Stainless Steel Mixing Elbow | Teilelager | GM, HM, YM, QM, YSM Yanmar series | |
| Exhaust Mixing Elbow for Yanmar Marine | Laueily | GM, HM, YM series | |
| MAIXIUNIAN 124070-13520 Mixing Elbow | MAIXIUNIAN | GM, HM, YM, QM, YSM families | |
| Stainless Steel Marine Exhaust Mixing Elbow (3JH/3E/4JH) | PPHPvpRRX | 3JH5E, 3E, 4JHE, 4JH2E, 4JH2CE |
ihreesy 128990-13520 Exhaust Mixing Elbow
Best for: Yanmar 2GM, 3GM, 3HM, and 3YM owners seeking OE-style exhaust elbows with proven durability. The part numbers align with common Yanmar replacements, aiding compatibility.
Why selected: The elbow is marketed with multiple OE-part numbers, signaling broad aftermarket compatibility and a sturdy metal build designed for sustained marine use.
Caution: Verify exact engine model and mounting dimensions to ensure proper fit before installation.
124070-13520 Stainless Steel Mixing Elbow
Best for: A broad range of GM/HM/YM/QM/YSM Yanmar engines, including 1GM through 3GM and 3YM variants, plus HM/QM families. It’s a flexible pick for mid-sized boats and older configurations.
Why selected: Features a detailed gasket and fitment spec list, plus explicit replacement part numbers, which helps in precise sourcing and ongoing maintenance.
Limitation: The extensive compatibility list can be overwhelming; confirm your exact model and threaded connections before purchase.

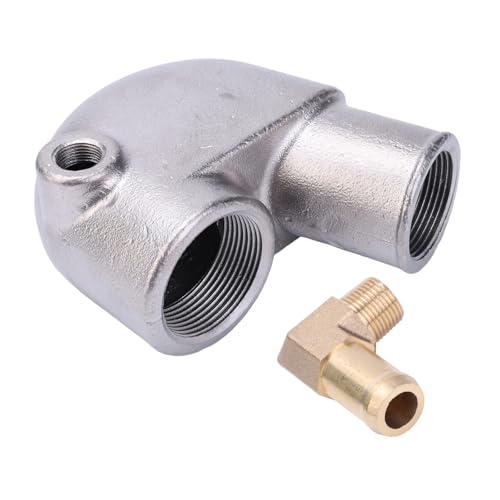

Exhaust Mixing Elbow for Yanmar Marine
Best for: Yanmar GM and HM series users seeking a robust replacement that pairs well with standard Yanmar cooling and exhaust routing.
Why selected: Emphasizes replacement parts with OE numbers, which supports reliable sourcing for repair projects or retrofits.
Caution: Confirm compatibility with your engine’s emission system and mounting footprint to avoid interference with hoses or clamps.
MAIXIUNIAN 124070-13520 Mixing Elbow
Best for: A wide range of GM, HM, YM, QM, and YSM engines, including 2GM/3GM and HM35F configurations, suitable for mid-to-large sail and powerboats.
Why selected: Provides extensive OE-part number coverage, reinforcing fit for many Yanmar models and related series, with solid stainless steel construction for durability.
Limitation: With many compatible variants, ensure your ship’s exact spec matches the listed replacements to prevent mismatch.
Stainless Steel Marine Exhaust Mixing Elbow (3JH/3E/4JH)
Best for: Marine diesel engines in the 3JH and 4JH families where a precise replacement elbow is needed, particularly for 129470-13561/13560 and 129670-13561 variants.
Why selected: Stainless steel construction tailored to marine exhaust systems, with explicit part-number replacements referenced in the title.
Caution: Fitment is engine-family specific; verify your engine code to avoid an incompatible elbow.
Stainless Steel Marine Exhaust Mixing Elbow (3JH5E/3E/4JH)
Best for: Similar to the PPHPvpRRX option, but with emphasis on matching 3JH 4JH engines and the 129470/129670 series numbers.
Why selected: Reiterates stainless steel build and exact part-number compatibility, aiding exact sourcing for older or custom installations.
Caution: Check the gasket and inlet/outlet dimensions to ensure an interference-free installation with existing hoses.
BayDe 129470-13561 Marine Exhaust Elbow
Best for: Yanmar 3JH/4JH engines where specific 129470-13561/13560/13561 variants are required. Suitable for maintenance or retrofits on older vessels.
Why selected: Focuses on exact part numbers and a compact package, facilitating straightforward replacements on compatible engines.
Limitation: Packaging notes are brief; verify the elbow’s dimensions match your exhaust routing and mounting hardware.
Stainless Steel Marine Exhaust Mixing Elbow (HhUBaSDua)
Best for: 3JH5E, 3E, 4JHE, 4JH2E, and 4JH2CE engines where reliable replacement with stainless steel is desired.
Why selected: Highlights stainless construction and exact part-number alignment for marine exhaust retrofits and replacements.
Caution: Confirm engine model and compatibility with your exhaust system’s mounting pattern before purchase.
Buying Guide
- Engine compatibility: Match the elbow to your engine family (GM, HM, YM, QM, YSM, 3JH, 4JH, etc.). Check OE part numbers listed by each seller to ensure fit.
- Material quality: Choose marine-grade stainless steel for corrosion resistance and longevity in saltwater environments.
- Gasket and thread specs: Confirm gasket size and inlet/outlet thread type (for example, 2 in OD, 3/8 in water inlet, or BSPT threads) to ensure a seal and proper plumbing.
- Installation footprint: Verify mounting holes, bolt pattern, and clearance to hoses and mufflers. Some elbows have broader mounting apertures or different elbow angles that affect routing.
- Replacement part strategy: If replacing an OEM elbow, check for exact part-number equivalents to minimize misfits and ensure consistent fit with existing clamps and hoses.
- Heat management purpose: These elbows are designed to mix hot exhaust with coolant to reduce heat exposure to piping and components; ensure your cooling system can accommodate the change.
- Installation notes: Some listings emphasize gasket replacement or gasket compatibility; plan for resealing joints during installation to prevent leaks.
FAQ
- What is the main purpose of an exhaust mixing elbow? It blends exhaust with coolant to reduce temperature, protecting hoses, mufflers, and engine bays from heat damage.
- How do I know which elbow fits my Yanmar engine? Check your engine model (GM, HM, YM, QM, YSM, or JH series) and cross-reference OE part numbers listed in the product description.
- Is stainless steel necessary for marine exhaust elbows? Stainless steel offers corrosion resistance and durability in saltwater environments, making it a common choice for replacements.
- Can I reuse existing gaskets when replacing the elbow? Many listings include gasket specifications or replacements; verify gasket size and seal requirements for your installation.
- What should I inspect before installation? Confirm compatibility, thread and inlet/outlet diameters, mounting hole pattern, and clearance with hoses and clamps.
- Are these elbows interchangeable between different engine families? Some elbows list broad compatibility across GM/HM/YM/QM/YSM or 3JH/4JH families, but verify exact model and part numbers to avoid mismatches.
